AFI Small Marine Wiper motor

Name: AFI Small Marine Wiper motor
SKU: 71081 | 71082 | 82082 | 82312

Part #

71081 = 12.3Nm 12v 25mm
71082 = 12.3Nm 12v 51mm
82082 = 15.7Nm 12v 51mm
82312 = 15.7Nm 24v 51mm

SKU: 71081 | 71082 | 82082 | 82312 Categories: Marine, Lite Duty, Motors

Description
Additional information
Reviews (0)
Copyright

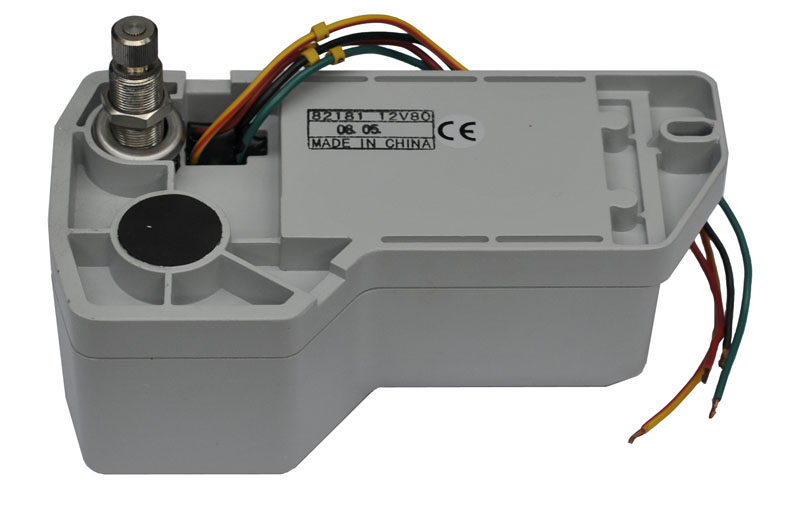

AFI Marinco wiper motor
Small Marine
Non Dynamic park
12, 24v
preset to 80 degree
45, 60, 80 or 110 degree settings
Thread length 25, 51mm
Max bulkhead thickness 16, 41mm radial arm
Max bulkhead thickness 14, 39mm pantograph arm

1.5 Motor
197 L x 100 W x 70 D
12.3 Nm
up to 20″ x 20″ arm blade combination

2.5 Motor
200 L x 107 W x 76 D
15.7 Nm
up to 24″ x 24″ arm blade combination

Mounting size	13.6mm straight spline
Power	12Nm, 15Nm
Voltage	12v DC, 24v DC
