Part #
ZD1230BA-12V-60-48
ZD1230BA-12V-60-68
ZD1230BA-12V-90-48
ZD1230BA-12V-90-68
ZD2230BA-24V-60-48
ZD2230BA-24V-60-68
ZD2230BA-24V-90-48
ZD2230BA-24V-90-68

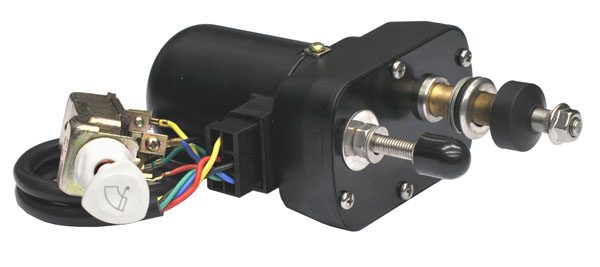

Tru Vision wiper motor
small screen wiper
remote switch
2 speed
M8-10mm spindle taper
M8 idler arm shaft
50mm centres between drive spindle and idler shaft
12V, 24V
60, 90 Degree sweep angle
48 shaft suit 8mm bulkhead thickness
68 shaft suit 28mm bulkhead thickness
| Voltage: | 12v DC, 24v DC |
|---|---|
| Power: | 9Nm |
| Mounting size: | M8-10mm tapered spline |
| SKU(s): | ZD1230BA-12V-60-48 | ZD1230BA-12V-60-68 | ZD1230BA-12V-90-48 | ZD1230BA-12V-90-68 | ZD2230BA-24V-60-48 | ZD2230BA-24V-60-68 | ZD2230BA-24V-90-48 | ZD2230BA-24V-90-68 |
| Brand: | Tru Vision |
| Categories: | Commercial Motors |
To find out more or to purchase this or any other part call 09 600 1423 or Email [email protected]
Tru Vision wiper motor
small screen wiper
remote switch
2 speed
M8-10mm spindle taper
M8 idler arm shaft
50mm centres between drive spindle and idler shaft
12V, 24V
60, 90 Degree sweep angle
48 shaft suit 8mm bulkhead thickness
68 shaft suit 28mm bulkhead thickness
| Voltage | 12v DC, 24v DC |
|---|---|
| Power | 9Nm |
| Mounting size | M8-10mm tapered spline |
